Elevators provide great convenience for everyone in modern life. At present, buildings with more than 6 floors are generally equipped with elevators. When taking the elevator, we will notice the stainless steel door pocket of the elevator door, which is used to protect the elevator from corrosion, damage, dirt and so on. When installing the stainless steel elevator door pocket, there are some points that need to be paid attention to. Xiaobian will share them with you.

a：不銹鋼電梯門套安裝注意事項如下：

a: Precautions for installation of stainless steel elevator door pocket are as follows:

1、材料厚度需不低于1.2厚（實際厚度不得小于1.08）。

1. The material thickness shall not be less than 1.2 thick (the actual thickness shall not be less than 1.08).

2、需注意用豎料來收口門頭橫料。

2. Pay attention to use vertical materials to close the door head and horizontal materials.

3、注意制作基層一定要小于門套包邊尺寸5mm左右，有足夠的空間安裝和打膠。

3. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, and there is enough space for installation and gluing.

4、門頭板寬度要略小于豎料寬度1-2毫米，收口才美觀。

4. The width of the door head plate should be slightly less than the width of the vertical material by 1-2mm, and the closing is beautiful.

5、一般門頭板和立面包板對接處的陰角處不建議用膠水收口，這樣既美觀又能檢驗門套安裝質量。

5. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is not only beautiful, but also can check the installation quality of the door pocket.

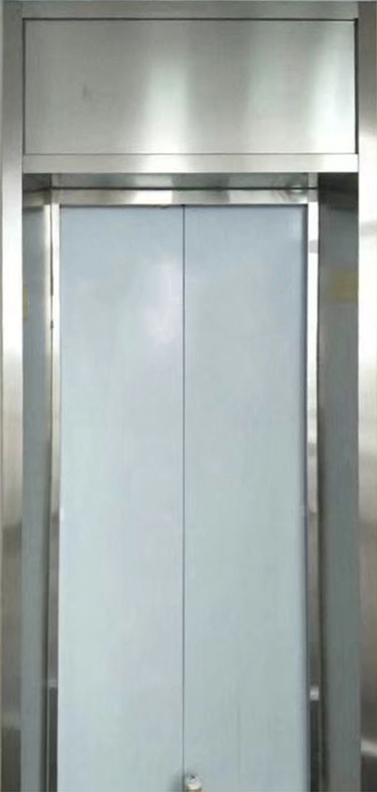

不銹鋼電梯門套

Stainless steel elevator door pocket

b：普通的45°拼接門套做法，常規注意事項如下：

b: For the common 45 ° splicing door pocket, the general precautions are as follows:

1、材料厚度需..1.2厚（實際厚度不得小于1.08）。注意對角處不能有錯位，旱接點一定要處理在隱蔽位置。

1. The material thickness needs to be 1.2 thick (the actual thickness shall not be less than 1.08). Note that there shall be no dislocation at the diagonal, and the dry contact must be handled in a concealed position.

2、注意制作基層一定要小于門套包邊尺寸5mm左右，有足夠的空間安裝和打膠。

2. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, and there is enough space for installation and gluing.

3、一般門頭板和立面包板對接處的陰角處不建議用膠水收口，這樣既美觀又能檢驗門套安裝質量。安裝質量粗劣，陰角打膠遮蓋瑕疵，不建議使用。

3. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is not only beautiful, but also can check the installation quality of the door pocket. The installation quality is poor, and the internal corners are glued to cover the defects. It is not recommended to use.
