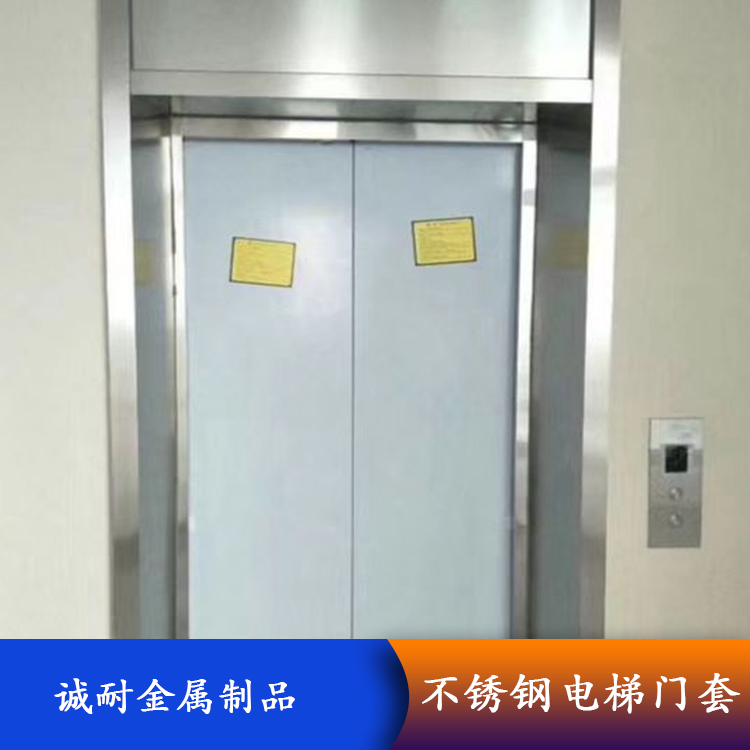

不銹鋼電梯門套在市場上的使用!

來源:http://duobimai.com/ 瀏覽:0發表時間:2022-03-02
1、根據設計圖紙檢查門的規格、開啟方向及相關配件。
1. Check the specification, opening direction and relevant accessories of the door according to the design drawings.
2、用卷尺測量門洞的高度和寬度。門的標準高寬為200cm×80cm;如有不符,請及時更正。
2. Measure the height and width of the door opening with a tape measure. The standard height and width of the door is 200cm × 80cm; If there is any discrepancy, please correct it in time.
3、測量位置線,確定門框位置,用墨斗彈拉出豎線,門孔一側的兩條豎線。
3. Measure the position line, determine the position of the door frame, pull out the vertical line with an ink fountain, and two vertical lines on one side of the door hole.
4. 用沖擊鉆在垂直線上鉆孔。孔與孔之間的距離約為30cm,門的一側有兩排10個孔。沖擊鉆的鉆頭應為12mm,鉆孔深度應為6cm左右。
4. Use percussion drill to drill holes on the vertical line. The distance between holes is about 30cm, and there are two rows of 10 holes on one side of the door. The bit of percussion drill shall be 12mm and the drilling depth shall be about 6cm.
5. 用錘子將小木楔一個一個地釘入孔中以固定門框面板。小木楔的尺寸為5cm×1.5cm×1.5cm。是用落葉松做的,因為落葉松的木結構很嚴實,不容易松動。
拉絲不銹鋼門套
5. Hammer the small wooden wedges into the holes one by one to fix the door frame panel. The size of the small wooden wedge is 5cm × 1.5cm × 1.5cm。 It is made of larch, because the wood structure of larch is very tight and not easy to loosen.
6、開料制作門框。門框龍骨左右兩側木板尺寸為200cm×3cm×8cm,門框頂部龍骨木板尺寸為80cm×3cm×8cm。將高密度九公分板粘在龍骨上,然后用汽釘固定。
6. Cut materials to make door frame. The size of the wooden boards on the left and right sides of the door frame keel is 200cm × 3cm × 8cm, the size of keel board at the top of door frame is 80cm × 3cm × 8cm。 Stick the high-density nine centimeter board on the keel and fix it with steam nails.
7、將三個完成的門框按照門的形狀連接起來,用大釘子固定在接縫處。
7. Connect the three finished door frames according to the shape of the door and fix them at the joint with large nails.
8、用刨子將被連接的門框表面平整,修整棱角,使棱角分明。
8. Use a plane to level the surface of the connected door frame and trim the edges and corners to make them clear.
9、將門框放在門洞上,根據墻壁的水平線,用木頭或磚塊墊在門框上,并調整好門框的高度。下面預留5cm埋入地板龍骨中。
9. Put the door frame on the door opening, pad the door frame with wood or brick according to the horizontal line of the wall, and adjust the height of the door frame. Reserve 5cm below and bury it in the floor keel.
10.在門框頂部釘一個釘子,將線垂下,通過線調整門框的垂直度,邊測量邊用扭釘將門框固定在門孔上。
10. Nail a nail on the top of the door frame, hang the line, adjust the verticality of the door frame through the line, and fix the door frame on the door hole with twist nails while measuring.
11.制作門面的線條。門面可以購買現成的,也可以由施工人員根據圖紙制作。制作完成后,將門面固定在門框上,這樣門套就基本完成了。
11. Make the lines of the facade. The facade can be purchased off the shelf or made by the construction personnel according to the drawings. After fabrication, fix the facade on the door frame, so that the door pocket is basically completed.
12、放門對門在套筒上畫好圖,確定鉸鏈在門套上的具體位置,然后根據鉸鏈的厚度切割出水口直徑。還要切出鎖套的口徑。將門安裝在門蓋上,用螺絲刀擰緊鉸鏈上的螺絲。注意門與門蓋之間的間隙不應大于1.5mm,以門開閉順暢為準。
12. Place the door to the door, draw a picture on the sleeve, determine the specific position of the hinge on the door sleeve, and then cut the diameter of the water outlet according to the thickness of the hinge. Also cut out the diameter of the lock sleeve. Install the door on the door cover and tighten the screws on the hinge with a screwdriver. Note that the gap between the door and the door cover shall not be greater than 1.5mm, subject to the smooth opening and closing of the door.
